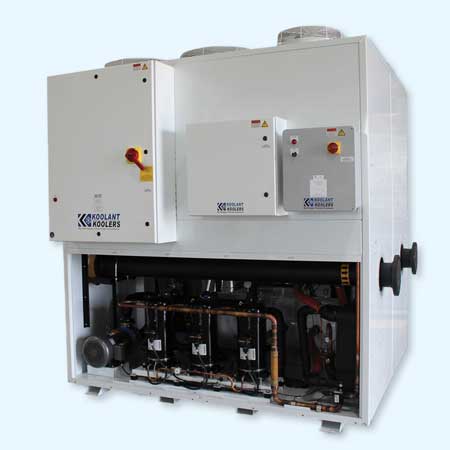

P Series Chillers

Designed for Growth

Self-contained  individual modules that combine for desired cooling capacity

The P Series is a pressurized closed loop system featuring an oxygen-free system that prevents evaporation and biological growth in water-only systems. This limits acid build-up to extend coolant life for water-glycol systems. This system is also self-contained with its own tank, pump and header piping to be a scalable system.  The control system’s design permits a single module to operate as a stand-alone chiller with the ability to add modules and a master controller as cooling capacity needs grow, which makes it ideal to support N+1 system designs. In the 40 tons and larger, dual refrigeration circuits are available in each module for improved uptime through component redundancy. Its energy efficient controls automatically match system cooling output to part-load demand. With its pressurized system, scalability and redundant design capabilities, the P Series offers more for your total cost of ownership.

PRODUCT SUMMARY
> Pressurized system enables adding pumps and reservoirs without field retrofitting & balancing systems.
> Capacities from 60,000 BTU/hr to 720,000 BTU/hr per module
> Water or Water/Glycol Operation
> Dual refrigeration circuits in each module with multiple scroll compressors for improved uptime through redundancy (40 tons and larger)
> Powdercoated Cabinet
> Energy efficient controls automatically match system cooling output during times of partial load demand.
> Master control with independent pressure and flow sensors provide process level control and alarms.
> Multiple building communication protocols available.
> Various Voltage and Various Pump flow/pressure options available.
> Built to UL 1995
18 Month Parts and Labor Warranty
> Next Day Parts Available

BASE CONFIGURATION: Digital Controller; Hermetic Scroll Compressor; Manual Fluid Bypass Valve; Pressurized Tank; Expansion tank; Pump in each module; Ferrous and non-ferrous wetted surfaces; Headers with flange connections; Cleanable Air Filter; Vertical Air Discharge; Pressure Gauge.

OPTIONS: Anti-backflow; Pressure Relief Bypass Valve; Inlet Water Filter; Auto Make-up Valve; Fluid Level Switch; Motorized Hot Gas Bypass; Non-Ferrous Stainless Steel wetted Surfaces; Master Controller (with sensors) for N+1 systems; Remote Display; cUL Certification.
