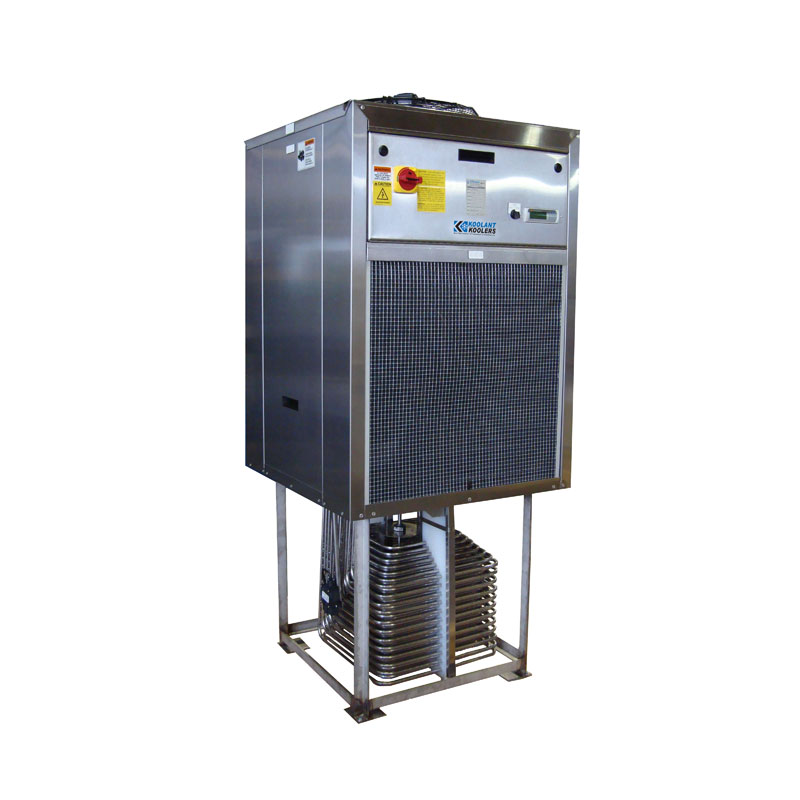

D Series Drop-in Chillers

1-30 Tons of Cooling

These Drop-In Chiller units are designed to sit in the existing customer tank to minimize required footprint and eliminate clogging issues. The drop-in submersed coil is ideal for applications using water, water soluble or oil-based process fluids. Options include water-cooled or remote condensers, remote digital display and lifting frame.

PRODUCT SUMMARY
> Drop-in, Stainless Coil Design
> Customer tank, or new tank can be provided
> Capacities from 12,000 BTU/hr to 360,000 BTU/hr
> Water, Water/Glycol, Water-Soluble, and Oil Based Fluids
> R407C Refrigerant
> Highly Customizable
> Air-Cooled Condenser (standard)
> Powder Coated Cabinet
> Voltage Options Available
> Fluid Setpoint 70º-95ºF
> Ambient Temperature Range 50-95ºF
> Temperature Stability ± 3ºF (Optional ± 1ºF)
> Built to UL 1995 (Optional cUL Certification)
> 18-Month Parts and Labor Warranty
> Next Day Parts Available

BASE CONFIGURATION: Air Cooled Condenser; Vertical Air Discharge; Stainless Submersible Heat Exchanger; Hermetic Sealed Scroll Compressor; NEMA 1 Standard Enclosure; Digital Temperature Control; Phase Monitor; Cleanable Air Filters.

OPTIONS: Remote or Water-Cooled Condenser; Fused Disconnect; Voltage Options; Motorized Hot Gas Bypass; Remote Start/Stop, Remote Box with Remote PDG (up to 150’); Ambient Temperature Tracking; Lifting Frame; cUL Certification.
